Primelite Manufacturing Corp.                                                                                  516­868­4411
               www.primelite­mfg.com                                                                       sales@primelite­mfg.com

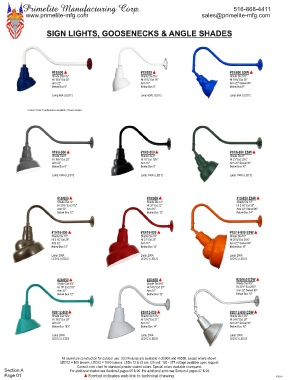

                          S I G N    LI G H TS ,       G O O S E N E C KS             &   AN G LE         S H AD E S










                             #15/850▲                                      #15/859▲                                       #15/850 ESW ▲
                             Shade Dia 6½"                                 Shade Dia 6½"                                  Shade Dia 6½"
                             Ht 15¾" Ext 25"                               Ht 15¾" Ext 18"                                Ht 19¾" Ext 25"
                             Arm 22"                                       Arm 16"                                        Arm 22" Swivel 90°
                             Below Box 8"                                  Below Box 8"                                   Below Box 9"

                             Lamp 60A | LED12                              Lamp 60A | LED12                               Lamp 60A | LED12



                Custom Color Combinations Available ­ Please Inquire











                             #19/8­850▲                                    #19/8­859▲                                     #19/8­850 ESW▲
                             Shade Dia 8"                                  Shade Dia 8"                                   Shade Dia 8"
                             Ht 16¾" Ext 25"                               Ht 16" Ext 19½"                                Ht 21" Ext 25½"
                             Arm 22"                                       Arm 16"                                        Arm 22" Swivel 90°
                             Below Box 8"                                  Below Box 9"                                   Below Box 10"

                             Lamp 100A | LED12                             Lamp 100A | LED12                              Lamp 100A | LED12





                               #19/850▲                                        #19/859▲                                       #19/850 ESW▲
                               Shade Dia 12"                                   Shade Dia 12"                                  Shade Dia 12"
                               Ht 20⅛" Ext 27½"                                Ht 20" Ext 22"                                 Ht 21¾" Ext 28"
                               Arm 22"                                         Arm 16"                                        Arm 22" Swivel 90°
                               Below Box 12"                                   Below Box 12"                                  Below Box 14"





                            #19/16­850▲                                    #19/16­859▲                                    #19/16­850 ESW▲
                            Shade Dia 16"                                  Shade Dia 16"                                  Shade Dia 16"
                            Ht 21¾" Ext 28"                                Ht 21" Ext 23"                                 Ht 26¾" Ext 29½"
                            Arm 22"                                        Arm 16"                                        Arm 22" Swivel 90°
                            Below Box 13"                                  Below Box 13"                                  Below Box 16"

                            Lamp 200A                                      Lamp 200A                                      Lamp 200A
                            LED12 | LED22                                  LED12 | LED22                                  LED12 | LED22





                               #20/850▲                                        #20/859▲                                       #20/850 ESW▲
                               Shade Dia 9½"                                   Shade Dia 9½"                                  Shade Dia 9½"
                               Ht 18" Ext 27½"                                 Ht 18½" Ext 20"                                Ht 22½" Ext 26¼"
                               Arm 22"                                         Arm 16"                                        Arm 22" Swivel 90°
                               Below Box 12"                                   Below Box 12"                                  Below Box 14"




                             #20/12­850▲                                   #20/12­859▲                                    #20/12­850 ESW▲
                             Shade Dia 12¼"                                Shade Dia 12¼"                                 Shade Dia 12¼"
                             Ht 19½" Ext 28"                               Ht 19½" Ext 21"                                Ht 24½" Ext 28"
                             Arm 22"                                       Arm 16"                                        Arm 22" Swivel 90°
                             Below Box 13½"                                Below Box 14"                                  Below Box 16"

                             Lamp 200A                                     Lamp 200A                                      Lamp 200A
                             LED12 | LED22                                 LED12 | LED22                                  LED12 | LED22




                                  All aluminum construction for outdoor use. LED Fixtures are available in 3000K and 4000K, except where shown.
                                 LED12 = 800 lumens, LED22 = 1800 lumens. LEDs 12 & 22 are 120 volt. 120 ­ 277 voltage available upon request.
                                          Consult color chart for standard powder coated colors. Special colors available on request.
   Section A                          For additional shades see Section A pages 05 & 06. For additional arms see Section A pages 07 & 08.
   Page 01                                   ▲ Symbol indicates web link to technical drawing.                                                     V2018
