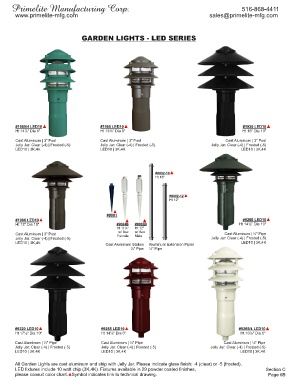

Page 11 - Primelite Catalog C - LED

Primelite Manufacturing Corp. 516­868­4411
www.primelite­mfg.com sales@primelite­mfg.com

GARDEN LIGHTS ­ LED SERIES

0▲ 0▲ 0▲
# 1 9 6 5 /4 L E D 1 # 1 9 6 5 L E D 1 # 1 9 2 0 L E D 1
Ht 14⅞" Dia 6" Ht 13¾" Dia 6" Ht 16" Dia 10"

Cast Aluminum | 3" Post Cast Aluminum | 3" Post Cast Aluminum | 3" Post
Jelly Jar: Clear (­4) | Frosted (­5) Jelly Jar: Clear (­4) | Frosted (­5) Jelly Jar: Clear (­4) | Frosted (­5)
LED10 | 3K,4K LED10 | 3K,4K LED10 | 3K,4K

8▲
# 9 0 0 2 - 1
Ht 18"

2▲
# 9 0 0 2 - 1
Ht 12"

▲
# 9 0 0 1
0▲ 0▲
# 1 9 6 6 L E D 1 ▲ ▲ # 9 2 6 6 L E D 1
Ht 13" Dia 10" # 9 0 0 4 B # 9 0 0 2 B Ht 14½" Dia 10"
Ht 11¼" Ht 12"
w/ Box w/ Box
Cast Aluminum | 3" Post Female Male Cast Aluminum | ½" Pipe
Jelly Jar: Clear (­4) | Frosted (­5) Jelly Jar: Clear (­4) | Frosted (­5)
LED10 | 3K,4K Cast Aluminum Stakes Aluminum Extension Pipes LED10 | 3K,4K
½" Pipe ½" Pipe

0▲ 0▲ 0▲
# 9 2 2 0 L E D 1 # 9 2 6 5 L E D 1 # 9 2 6 5 /4 L E D 1
Ht 17½" Dia 10" Ht 14⅞" Dia 6" Ht 16⅛" Dia 6"

Cast Aluminum | ½" Pipe Cast Aluminum | ½" Pipe Cast Aluminum | ½" Pipe
Jelly Jar: Clear (­4) | Frosted (­5) Jelly Jar: Clear (­4) | Frosted (­5) Jelly Jar: Clear (­4) | Frosted (­5)
LED10 | 3K,4K LED10 | 3K,4K LED10 | 3K,4K

All Garden Lights are cast aluminum and ship with Jelly Jar. Please indicate glass finish: ­4 (clear) or ­5 (frosted).
LED fixtures include 10 watt chip (3K,4K). Fixtures available in 29 powder coated finishes, Section C
▲
please consult color chart. Symbol indicates link to technical drawing. Page 6B
